EE92251B1-A99

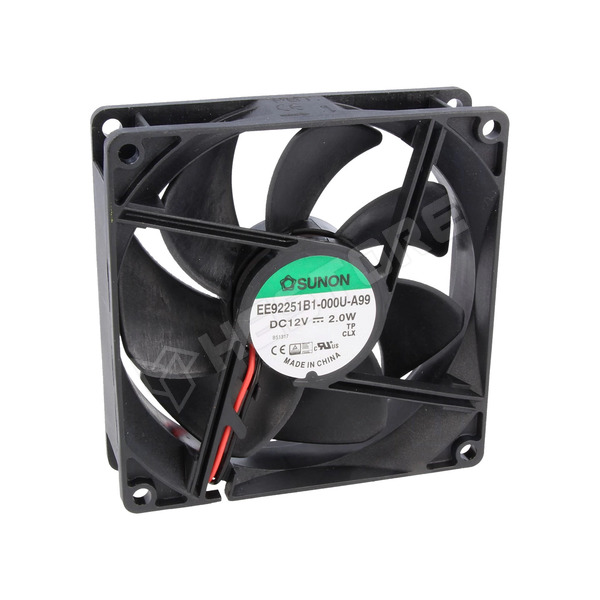

Fan, DC, 12V DC, 92x92x25mm, ball bearing, 87.55m3/h, shaft
Gyártó: SUNON
Ventilátor típus: DC
Meghajtás: kefék nélküli DC motor
Áram- és teljesítmény felvétel tolerancia: ±15%
Üzemi hőmérséklet: -10...70°C
Burkolat anyaga: termoplast PBT
Szélmotor anyaga: termoplast PBT
Szigetelési osztály: E
Éghetőségi fokozat: UL94V-0
Ventilátor típus: DC
Meghajtás: kefék nélküli DC motor
Áram- és teljesítmény felvétel tolerancia: ±15%
Üzemi hőmérséklet: -10...70°C
Burkolat anyaga: termoplast PBT
Szélmotor anyaga: termoplast PBT
Szigetelési osztály: E
Éghetőségi fokozat: UL94V-0
| Manufacturer partno | EE92251B1-000U-A99 |
|---|---|
| RoHS | yes |
| Manufacturer | SUNON |
| Weight | 94g |
| Operating voltage | 4.5...13.8V |
| Operating temperature | -10...70°C |
| Supply voltage | 12V DC |
| Enclosure material | thermoplastic |
| Current rating | 0.165A |
| Leads | 2 leads |
| Min. insulation resistance | 10MΩ |
| IP rating | A |
| Flammability rating | UL94V-0 |
| Wire size | 28AWG |
| Cable length | 300mm |
| Type of fan | DC |
| Fan kind | shaft |
| Fan dimensions | 92x92x25mm |
| Power consumption | 2W |
| Fan efficiency | 87.55m3/h |
| Noise level | 34dBA |
| Bearing type | ball bearing |
| Rotational rate/speed | 3000 (±10%)rpm |
| Current and power consumption tolerance | ±15% |
| Impeller material | thermoplastic |
| Static pressure | 3.81mm H2O |
| Fan motor | brushless DC |
| Additional functions | Autorestart |
| Kind of fan | shaft |
| Kind of Bearing | ball bearing |
Extended distributor/manufacturer information (EU Regulation 2023/988)
Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/
Part.No: 100.279.77
Quantity (pcs):
Unit price gross (netto)
| 1+ | 2 760 Ft (2 173 Ft +VAT) |
|---|---|
| 5+ | 2 445 Ft (1 925 Ft +VAT) |
| 10+ | 2 377 Ft (1 872 Ft +VAT) |
| 20+ | 2 323 Ft (1 829 Ft +VAT) |
| 50+ | 2 253 Ft (1 774 Ft +VAT) |
The price includes 27% VAT.
* The price according to your settings are displayed including VAT, that contains your custom discount if available, without shipping costs.
For modify please click
icon on top menu. | Availability | Qu. |
|---|---|
| In stock | > 5 |
| 3 workdays | > 50 |
