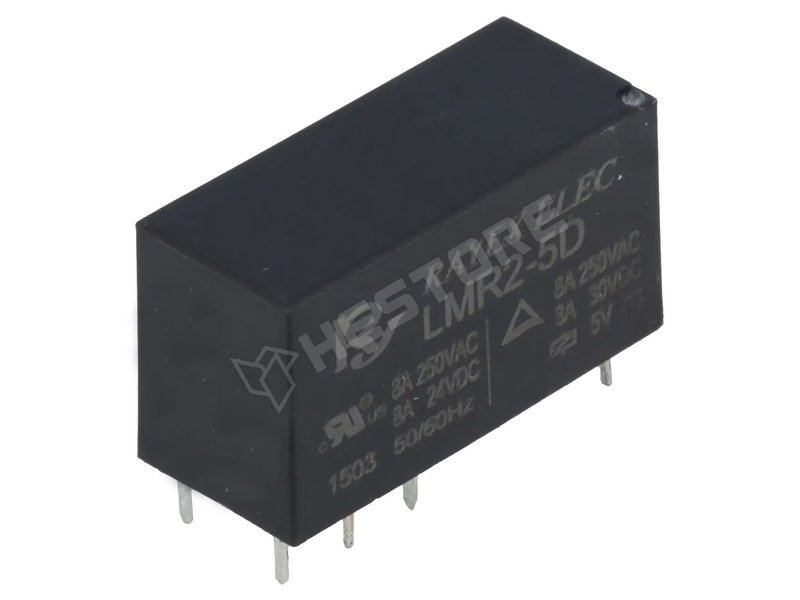

LMR2-5D

Relé 5V 2 ÁK DPDT 250VAC 5A

Manufacturer partno	LMR2-5D
Manufacturer	Recoy/RAYEX ELECTRONICS
Mounting	PCB
Terminal pitch	5mm
Operating temperature	-40...80°C
Body dimensions	29x15.5x12.5mm
Body dimensions	29x15.5x12.5mm
Contact material	AgCdO
Contacts configuration	DPDT
Type of relay	electromagnetic
Rated coil voltage	5V DC
Contact current max.	5A
Switched voltage	max. 250V AC, max. 30V DC
Relay variant	miniature, miniature
Coil resistance	47Ω
Coil power consumption	530mW
Relay series	LM2
Contact resistance	100mΩ
Coil current	106.4mA
DC contacts rating @R	5A / 30V DC
AC contacts rating @R	5A / 250V AC

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.321.56

Add to favorites

Quantity (pcs):

Packing:
25 pcs / tube

Unit price gross (netto)

1+	1 176 Ft (926 Ft +VAT)
5+	925 Ft (729 Ft +VAT)
10+	884 Ft (696 Ft +VAT)
25+	856 Ft (674 Ft +VAT)
50+	825 Ft (650 Ft +VAT)

The price includes 27% VAT.

* The price according to your settings are displayed including VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
3 workdays	> 500
