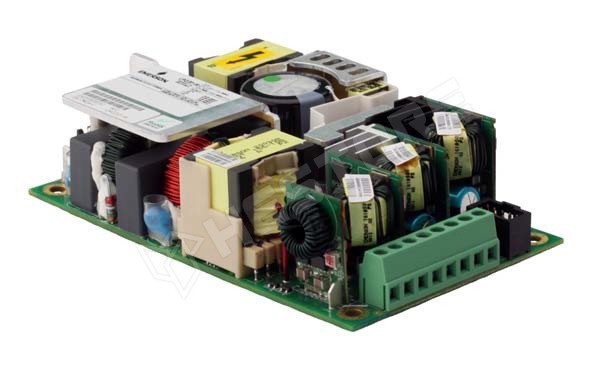

PSU, OPEN FRAME, 4O/P, 200W
Power Supply Output Type: Adjustable, Fixed
Input Voltage VAC: 90V to 264V
No. of Outputs: 4
Output Voltage Nom.: 5V, 12V, 24V, -12V
Output Current Max: 13A, 5A, 1.5A, 1A
Output Power Max: 100W
Approvals / Standards: CSA 60601, UL 60601
SVHC: No SVHC (20-Jun-2013)
Applications: Medical
Current, Output 4: 2A
Height: 33.53mm
Input Frequency: 63Hz
Input Voltage: 90V AC to 264V AC , 120V DC to 300V DC
Length: 127mm
Output Current: 18A
Output Current Nom - Output 2: 9A
Output Current Nom - Output 3: 3A
Output Voltage: 5V
Output Voltage 4: 12V
Output Voltage Nom - Output 2: 12V
Output Voltage Nom - Output 3: 24V
Power Rating: 200W
Power Supply Type: Open Frame
Width: 76.2mm
