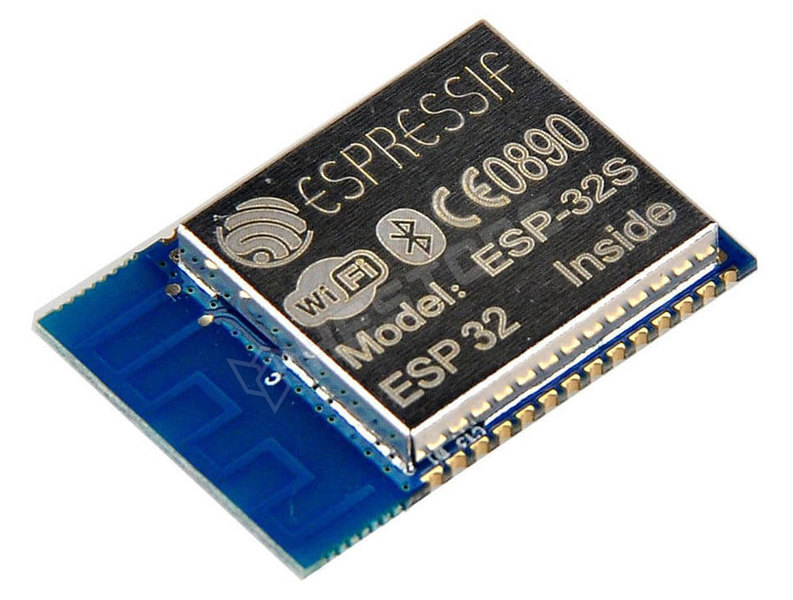

ESP-WROOM-32/ESP32
ESP32 WiFi 802.11bgnei, Bluetooth v4.2 module
Cikkszám: 100.377.86
Mennyiség (db):
Egységár ÁFA nélkül
1+ |
1 295 Ft |
5+ |
1 111 Ft |
10+ |
1 073 Ft |
20+ |
1 045 Ft |
50+ |
1 012 Ft |
* A megjelenített ár az
egyéni beállításnak megfelelően nettó (ÁFA nélküli) ár, mely már tartalmazza az esetleges egyedi kedvezményt, szállítási költség nélkül.
Módosításához kattintson a fejléc
ikonjára.
Elérhetőség |
Menny. |
Raktáron |
> 1 |
10-15 munkanap |
> 2000 |
CPU and Memory: Xtensa® 32-bit LX6 Dual-core processor, up to 600 DMIPS.
448 KByte ROM
520 KByte SRAM
16 KByte SRAM in RTC.
QSPI can connect up to 4* Flash/SRAM, each flash should be less than 16 Mbytes.
Supply Voltage: 2.2V~3.6V
Wifi:
802.11 b/g/n/e/i
802.11 n (2.4 GHz), up to 150 Mbps
802.11 e: QoS for wireless multimedia technology.
WMM-PS, UAPSD
MPDU and A-MSDU aggregation
Block ACK
Fragmentation and defragmentation
Automatic Beacon monitoring/scanning
802.11 i security features: pre-autication and TSN
Wi-Fi Protected Access (WPA)/WPA2/WPA2-Enterprise/Wi-Fi Protected Setup (WPS)
Infrastructure BSS Station mode/SoftAP mode
Wi-Fi Direct (P2P), P2P Discovery, P2P Group Owner mode and P2P Power Management
UMA compliant and certified
Antenna diversity and ion
Bluetooth:
Compliant with Bluetooth v4.2 BR/EDR and BLE specification
Class-1, class-2 and class-3 transmitter without external power amplifier
Enhanced power control
+10 dBm transmitting power
NZIF receiver with -98 dBm sensitivity
Adaptive Frequency Hopping (AFH)
Standard HCI based on SDIO/SPI/UART ? High speed
UART HCI, up to 4 Mbps
BT 4.2 controller and host stack
Service Discover Protocol (SDP)
General Access Profile (GAP)
Security Manage Protocol (SMP)
Bluetooth Low Energy (BLE)
ATT/GATT
HID
GATT-based profile supported
SPP-Like GATT-based profile
BLE Beacon
A2DP/AVRCP/SPP, HSP/HFP, RFCOMM
CVSD and SBC for audio codec
Bluetooth Piconet and Scatternet
Gyártói jelölés |
ESP-32S |
Gyártó |
ESPRESSIF |
Frekvencia |
2.4GHz |
Szerelés |
SMD |
Adatátvitel sebessége |
150Mbps |
Standard |
4.2 EDR |
Kommunikációs modul típusa |
Bluetooth, WiFi |
