25702

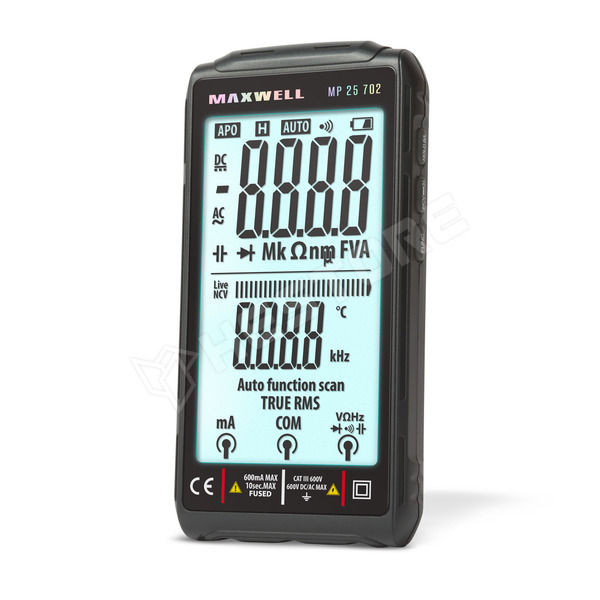

Automatic multimeter, 4.2" display, li-ion battery, Type-C connector
The advantage of the fully automatic multimeter is that during the measurement, the device automatically recognizes which function is needed and performs the measurement in that function. The measurement results can be easily and quickly read from the large display. With the help of the sensor on the back of the device, you can detect voltage without breaking the wiring. It is characterized by an ergonomic device housing, compact size and easy handling. The practical, hard-walled carrier bag protects the product during transport. With the help of the built-in battery, you can use the device for a long time without charging, and you can quickly charge the device through the Type-C port, thereby maximizing the operating time of the device.
- Large "FullScreen" display
- Built-in battery with Type-C port
- Automatic measurement function setting
- Possibility of manual setting (Voltage detection, capacity measurement, frequency measurement)
- Continuity test
- Resistance measurement
- Frequency measurement
- Diode test
- Flashlight function
- Sound signal
- Data protection
- Automatic shutdown
- Accessories: Instrument cord, Type-C-USB cable, carrying case
| Manufacturer |
MAXWELL |
| Connector variant |
USB Type-C |
| Body dimensions |
137 x 70 x 20 mm |
| Type of display used |
LCD (9999) |
| Additional functions |
torch |
| Kit contents |
2x test lead, case, USB cable |
| Measuring instrument features |
HOLD function, diode and continuity test with buzzer, automatic power-off, torch |
| Resistance measuring range |
1kΩ...20MΩ |
| Capacitance measuring range |
100nF...100mF |
| DC voltage measuring range |
10...600V |
| Frequency measuring range |
10Hz...1MHz |
| Diode test |
yes |
| AC current measuring range |
60...600mA |
| AC voltage measuring range |
10...600V |
| Kind of display used |
4-digit (9999) LCD TFT 4.2" |
| Type of rechargeable battery |
500mAh Li-ion |
