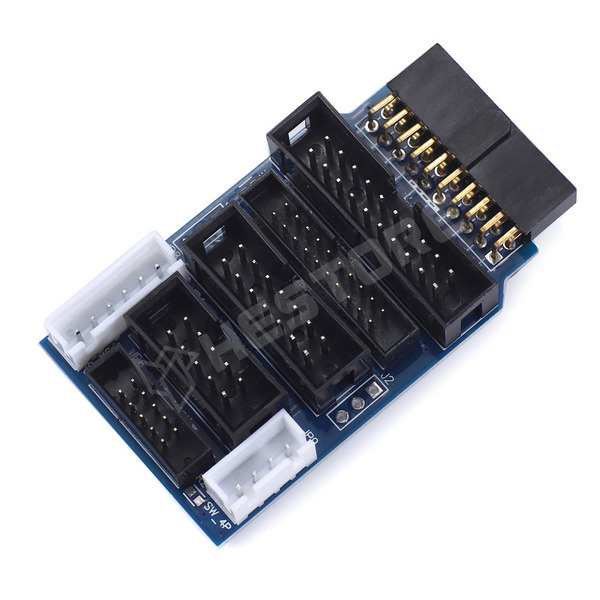

Multi-function adapter board
The interfaces provided by the multi-function adapter board are as follows:
Interface 1: 2.54 pitch 20-pin corner socket (can be directly connected to the JTAG socket)
Interface 2: 2.54 pitch 20-pin straight socket
Interface 3: 2.0 pitch 20-pin straight socket
Interface 4: 2.54 pitch 14-pin straight socket
Interface 5: 2.54 pitch 10-pin straight socket
Interface 6: 2.0 pitch 10-pin straight socket
Interface 7: 2.54 pitch 6-pin straight socket
Interface 8: 2.54 pitch 4-pin straight socket
