RADXA-ROCK5B-8GB

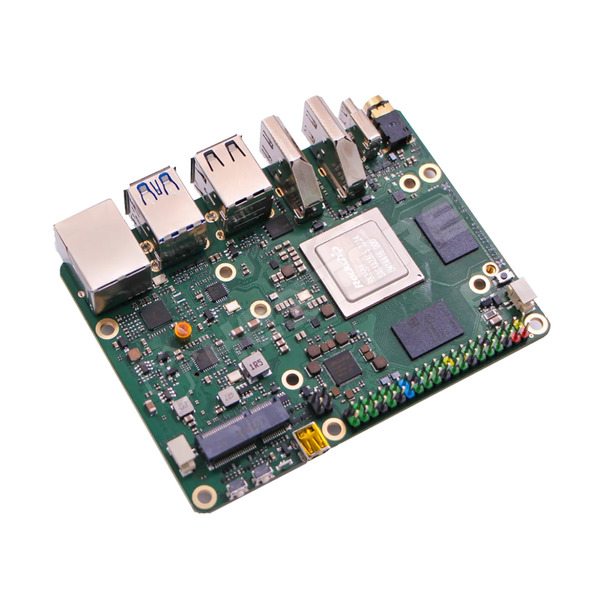

Radxa ROCK 5B, RK3588, Quad Cortex-A76 és A55, Arm Mali G610MC4, 8GB LPDDR4x RAM, WiFi6, Bluetooth 5
RADXA-ROCK5B-8GB / Radxa ROCK 5B, RK3588, Quad Cortex-A76 és A55, Arm Mali G610MC4, 8GB LPDDR4x RAM, WiFi6, Bluetooth 5 (Radxa)
SoC
- Rockchip RK3588

CPU
- Quad Cortex®-A76 and Quad Cortex®-A55

GPU
- Arm® Mali™ G610MC4
- OpenGL® ES1.1, ES2.0, and ES3.2
- OpenCL® 1.1, 1.2 and 2.2
- Vulkan® 1.1 and 1.2
- Embedded high performance 2D image acceleration module

NPU
- Supporting INT4 / INT8 / INT16 / FP16 / BF16 and TF32 acceleration
- Computing power is up to 6TOPs

Multimedia
- H.265 / H.264 / AV1 / AVS2 multivideo decoder up to 8K@60fps
- H.264 / H.265 multivideo encoder up to 8K@30fps

RAM
- 64bit LPDDR4x

Storage
- SPI Flash: SPI Flash for Bootloader
- eMMC Connector: Support high performance eMMC module up to 512GB
- Micro SD Card Slot: Support microSD cards with SDHC / SDXC / UHS-I speed
- M.2 M Key Connector: Support 2280 NVMe SSD(4-lane PCIe 3.0)

Audio
- 1x 4‐ring 3.5mm Headphone Jack with Microphone Input

Display
- 1x Standard HDMI 2.1 supporting up to 8Kp60
- 1x Standard HDMI 2.1 supporting up to 4Kp60
- 1x DP via USB Type C port
- 1x MIPI DSI supporting up to 1080p60
- Able to provide 4 display outputs at the same time

Video Input
- 1x Micro HDMI Input supporting up to 4Kp60

USB
- 1x Full function USB Type-C™ port
- Supporting PD Version 2.0
- DP display up to 4Kp60
- USB 3.1 Gen1
- 1x USB 3.1 Gen1 Type A HOST port
- 1x USB 3.1 Gen1 Type A HOST port
- 2x USB 2.0 Type A HOST port

Ethernet
- 1x 2.5 Gigabit Ethernet port with PoE support(Additional PoE HAT Required)

Wireless
- Support Standard M.2 WiFi 6(E) / BT 5 module
- Support Radxa Wireless Module A8

Miscellaneous
- 1x RTC battery connector
- 1x PWM fan connector
- 1x Power button
- 1x Recovery button
- 1x RGB LED for power indicator, system status indicator and custom usage

Power Requirements
- USB Type-C™ PD Version 2.0 with 9V/2A, 12V/2A, 15V/2A and 20V/2A
- Power adapter with fixed voltage in 5.2V to 20V range on the USB Type-C port
- 5V Power applied to the GPIO PIN 2 & 4

Software
- Radxa OS
- Android

Operating Conditions
- Recommended environmental temperature: 0 ~ 50°C
- Radxa ROCK 5B has a temperature limit of 80°C, beyond which it throttles clock speeds for reliability
- For continuous high-performance use, external cooling methods like heat sinks or fans can maintain maximum clock speed below the 80°C limit

Dimension
- 100 mm x 75 mm

Compliance Certification
- FCC / CE
Gyártó Radxa
